MHO2000

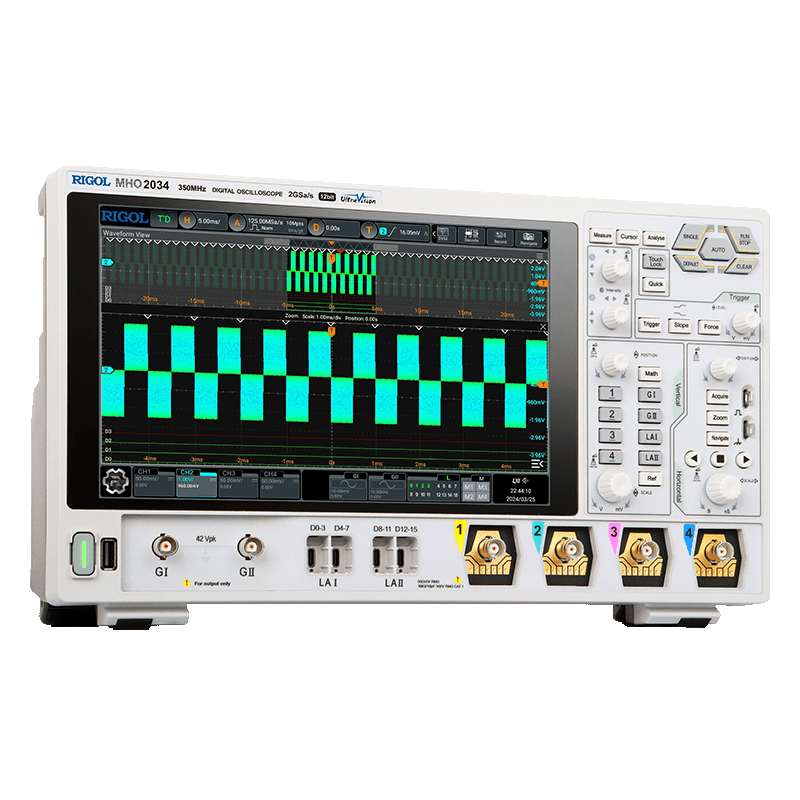

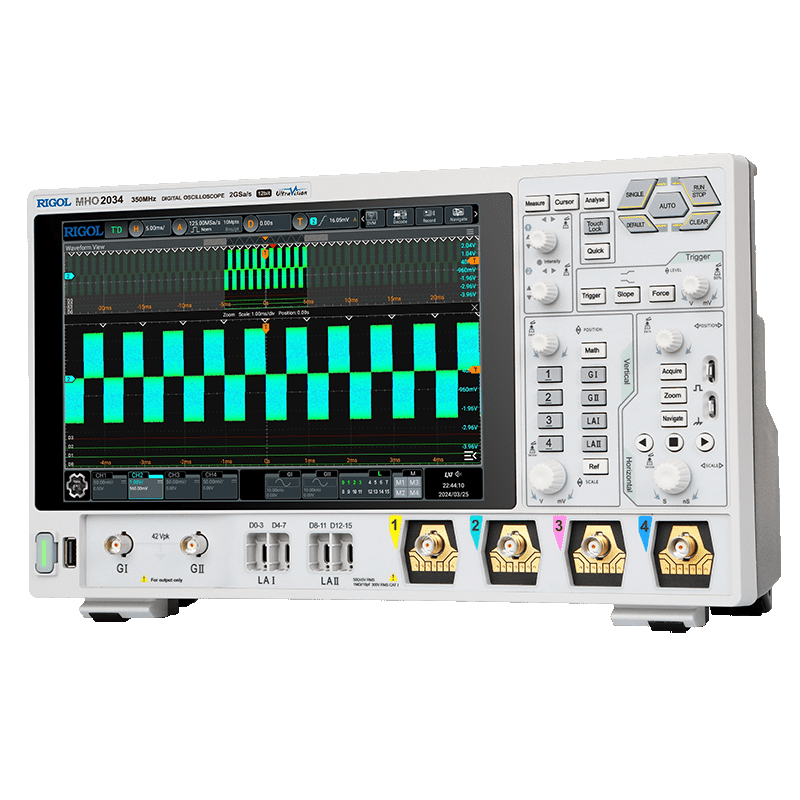

The MHO2000 series is a high-resolution, reliable, and cost-effective mixed-signal digital oscilloscope with up to 350?MHz bandwidth. It features a 12-bit ADC and integrates functions such as protocol analysis, logic analysis, and signal generation. Ideal for power, medical, and automotive electronics, the MHO2000 enables efficient, multi-dimensional testing and analysis.
Explore the MHO2000 Series Digital Oscilloscopes

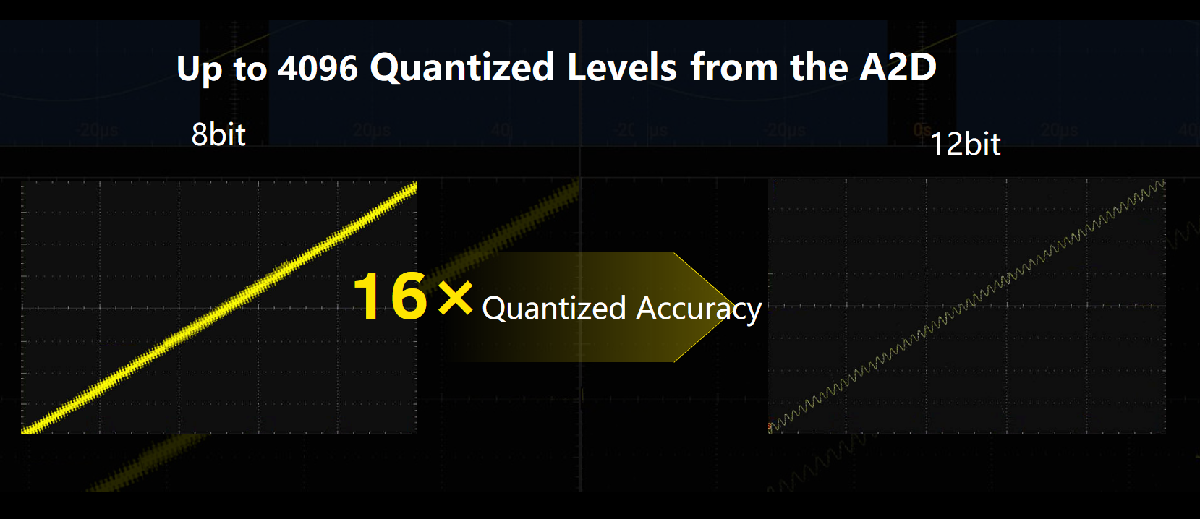

Ultra-high resolution capturing tiny details
The MHO2000 series features excellent 12-bit resolution with up to 4096 quantization levels, greatly improving measurement accuracy. Compared to 8-bit oscilloscopes, it delivers up to 16× detail, capturing subtle signal variations. With vertical sensitivity down to 200?μV/div, it’s ideal for power ripple or medical signal testing, ensuring precise analysis for innovation and reliability.

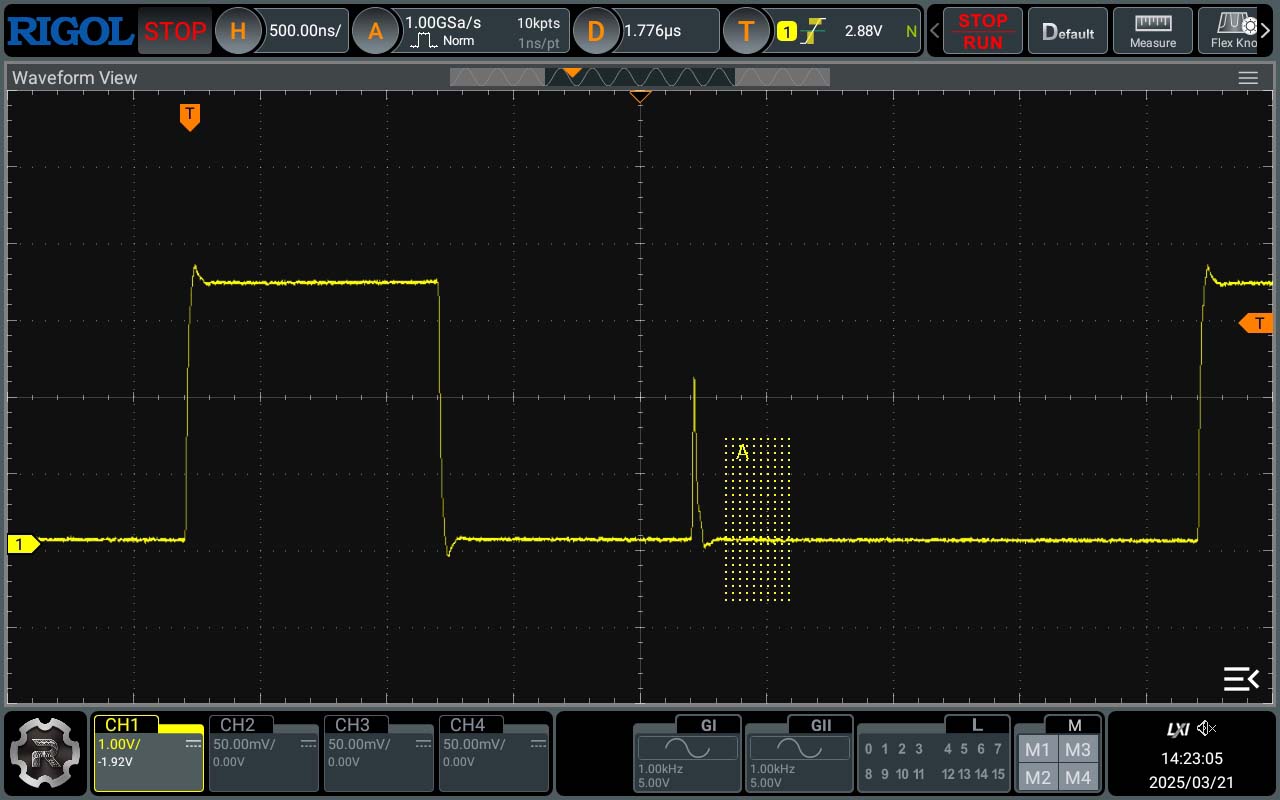

Versatile triggering and decoding for diverse industries
The MHO2000 series offers multiple trigger types—edge, interval, timeout, video, serial bus, and area trigger—for reliable capture of abnormal signals. It also supports I2C, SPI, CAN, CAN-FD, FlexRay, I2S, MIL-STD-1553B, and more, meeting bus testing needs across embedded, automotive, and computing industries.

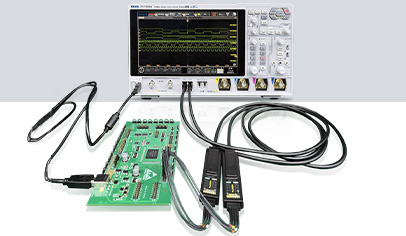

Standard digital channel, stable signal transmission
The MHO2000 series comes standard with digital channels and supports the PLA3204 logic probe for efficient analog and digital signal debugging. This setup enables deep digital analysis and precise capture of signal interactions in complex systems, ensuring high efficiency and accuracy in R&D, troubleshooting, and performance optimization to boost project success rates

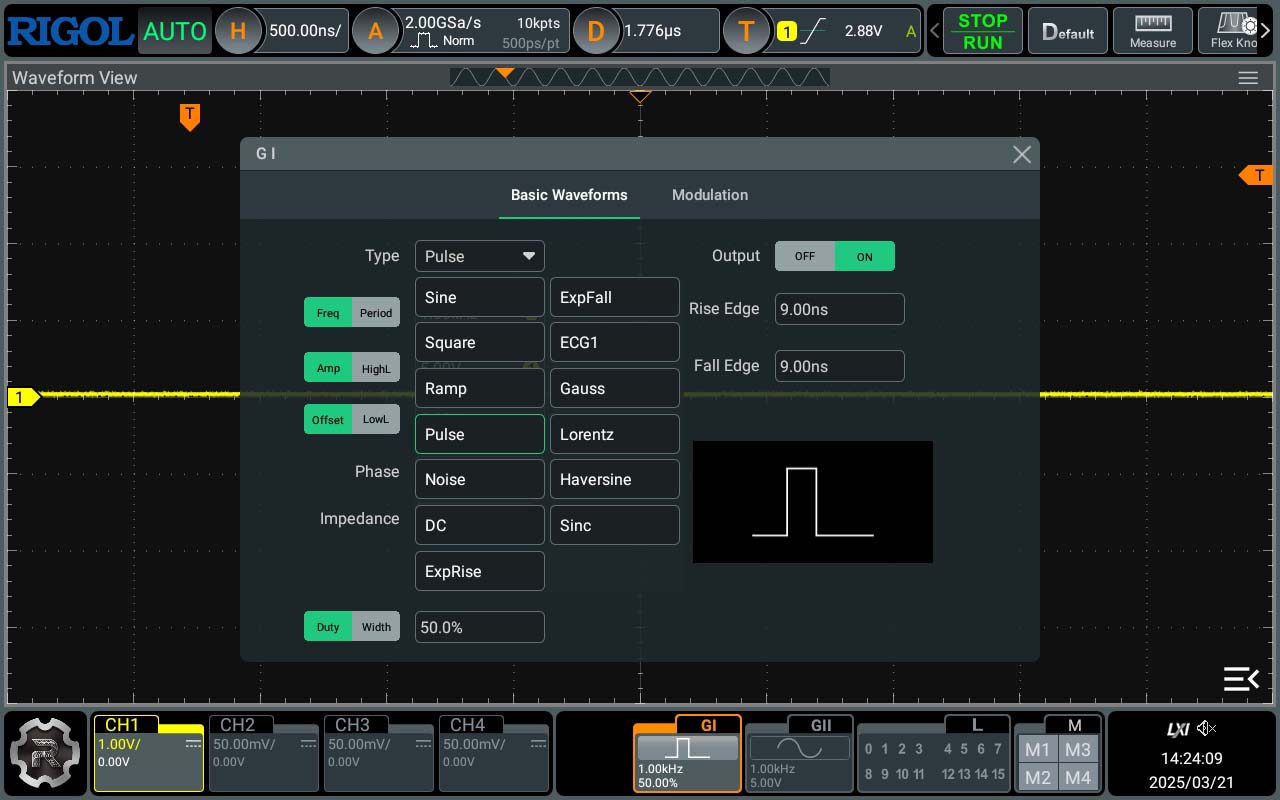

Built-in function generator for advanced analysis
The MHO2000 series high-resolution digital oscilloscope supports a built-in dual-channel signal generator with 16-bit resolution, providing waveform output up to 50MHz, including sine wave, square wave, triangle wave, pulse wave, noise, DC, and a variety of built-in arbitrary waves, which can be widely used in various scientific experiments and industrial control fields.
MHO2000
|
Model
|
Analog Bandwidth
|
Analog Channels
|
Maximum Real-time Sample Rate
|
Maximum Memory Depth
|
Maximum Waveform Capture Rate
|
Digital Channel
|
Built-in Signal Source
|
Price
|
|---|---|---|---|---|---|---|---|---|
|
MHO2034
|
Analog Bandwidth
|
Analog Channels
|
Maximum Real-time Sample Rate
|
Maximum Memory Depth
|
Maximum Waveform Capture Rate
|
Digital Channel
|
Built-in Signal Source
|
|
|
MHO2024
|
Analog Bandwidth
|
Analog Channels
|
Maximum Real-time Sample Rate
|
Maximum Memory Depth
|
Maximum Waveform Capture Rate
|
Digital Channel
|
Built-in Signal Source
|
Passive probe
|
Model
|
Description
|
Price
|
Downloads
|
Action
|
|---|---|---|---|---|
|
RP6150A
|
1.5GHzPassive low resistance probe（500ohm）
|
$
318(VAT excl.)
|
Buy now
|
|
|
RP1300H
|
300MHzHigh voltage probe(2kV)
|
$
232(VAT excl.)
|
Buy now
|
|
|
RP3500A
|
500MHzPassive high resistance probe
|
$
217(VAT excl.)
|
Buy now
|
|
|
RP1018H
|
18kV 100MHzHigh voltage probe
|
$
985(VAT excl.)
|
Buy now
|
Current probe
|
Model
|
Description
|
Price
|
Downloads
|
Action
|
|---|---|---|---|---|
|
RP1002C
|
1MHz，70ADC
|
$
1736(VAT excl.)
|
Buy now
|
|
|
PCA1150
|
Current probe：10MHz，150A
|
$
5819(VAT excl.)
|
Buy now
|
|
|
RP1001C
|
300KHz，100A DC
|
$
825(VAT excl.)
|
Buy now
|
|
|
PCA2030
|
Current probe：100MHz，30A
|
$
6090(VAT excl.)
|
Buy now
|
|
|
RP1004C
|
100MHz,30A
|
$
5049(VAT excl.)
|
Buy now
|
|
|
PCA1500
|
2MHz, 500A Current Probe
|
$
6490(VAT excl.)
|
Buy now
|
|
|
RP1005C
|
10MHz,150A
|
$
4418(VAT excl.)
|
Buy now
|
|
|
RP1006C
|
2MHz，500A
|
$
5490(VAT excl.)
|
Buy now
|
|
|
PCA1030
|
Current probe：50MHz，30A
|
$
4865(VAT excl.)
|
Buy now
|
|
|
RP1003C
|
50MHz,30A
|
$
3471(VAT excl.)
|
Buy now
|
High-voltage differential probe
|
Model
|
Description
|
Price
|
Downloads
|
Action
|
|---|---|---|---|---|
|
PHA0150
|
High voltage differential probe，DC-70MHz，1500V
|
$
799(VAT excl.)
|
Buy now
|
|
|
RP1050D
|
High Voltage Differential Probe，50MHz，3.5KV
|
$
651(VAT excl.)
|
Buy now
|
|
|
RP1100D
|
High Voltage Differential Probe，100MHz，3.5KV
|
$
753(VAT excl.)
|
Buy now
|
|
|
RP1025D
|
High Voltage Differential Probe,25MHz,700V
|
$
449(VAT excl.)
|
Buy now
|
|
|
PHA1150
|
High voltage differential probe，DC-100MHz，1500V
|
$
999(VAT excl.)
|
Buy now
|
|
|
PHA2150
|
200MHz, 1500V High Voltage Differential Probe
|
$
1590(VAT excl.)
|
Buy now
|
Logic analysis probe
|
Model
|
Description
|
Price
|
Downloads
|
Action
|
|---|---|---|---|---|
|
PLA3204
|
Quad-channel Logic Analyzer Probe
|
$
190(VAT excl.)
|
Buy now
|
|
Model
|
Description
|
Price
|
|---|
|
Model
|
Description
|
Price
|
|---|
|
Model
|
Description
|
Price
|
|---|
|
Name
|
Version
|
Release time
|
|---|---|---|
MHO2000 Datasheet
|
DSA44100-1110
|
2025-05-08
|
|
Name
|
Version
|
Release time
|
|---|---|---|
|
MHO2000 UserGuide
|
UGA44100-1110
|
2025-05-08
|
|
BatHolder350 UserGuide
|
UGN02100-1110
|
2025-07-30
|
|
RM6051_RackmountKit_EN
|
202603
|
2026-03-31
|
|
Name
|
Version
|
Release time
|
|---|---|---|
|
Power Analysis Application Guide
|
ANW01100-1220-0032
|
2025-12-12
|
|
Name
|
Version
|
Release time
|
|---|---|---|
|
MHO2000 Programming Guide
|
PGA44100-1110
|
2025-05-13
|
|
Name
|
Version
|
Release time
|
|---|---|---|
DHO5000_MHO5000_MHO2000(ARM)_Update
|
v00.02.00.00.02
|
2025-11-17
|
|
Name
|
Version
|
Release time
|
|---|---|---|
|
UltraStation
|
00.02.00.00.14
|
2024-11-01
|
