DG800
The DG800 series function/arbitrary waveform generator is a multi-functional signal generator that integrates functions such as a function generator, arbitrary waveform generator, noise generator, pulse generator, pattern generator, harmonic generator, analog/digital modulator, and frequency counter. The brand-new appearance and user-friendly interface design bring a friendly user experience.
Explore the DG800 Series Function/Arbitrary Waveform Generator
4.3-inch touch screen

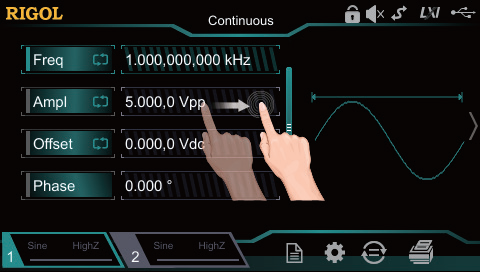

4.3-inch TFT color touch screen with a brand-new UI design
16-bit vertical resolution
The DG800 series generators expand the output with 16-bit resolution. The output voltage options are four times that of traditional 14-bit generators. The DG800 can reproduce any waveform more reliably, improving signal fidelity and performance.
SiFi II technology

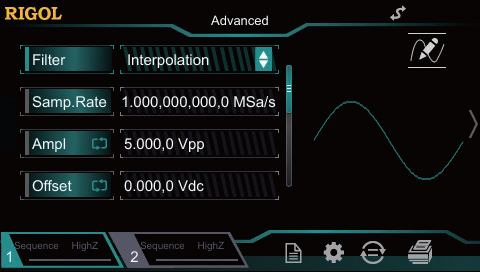

SiFi II technology allows you to represent signals with maximum flexibility through filtering options such as stepping, smoothing, and interpolation. These options in the powerful signal sorting function provide precise roll-off control for the signals you select. Combine these flexible playback options or use the edge time in interpolation mode to customize the range of broadband components in the signal.
Supports multiple signal outputs

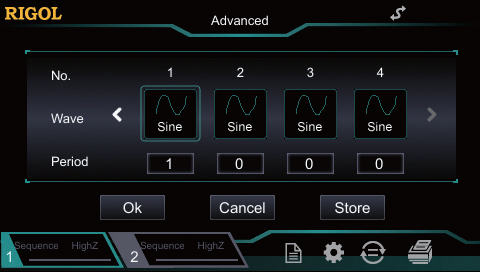

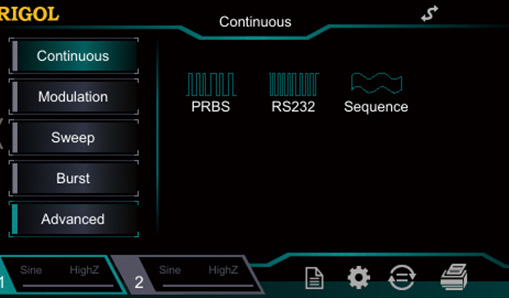

Supports PRBS, RS232, and Sequence output.
Built-in waveform superposition and channel tracking
The waveform with a specified frequency and percentage amplitude can be superimposed on the fundamental wave for output. When the channel tracking function is enabled, all parameters of the dual channels can be updated simultaneously according to the user's configuration.
Fanless silent design

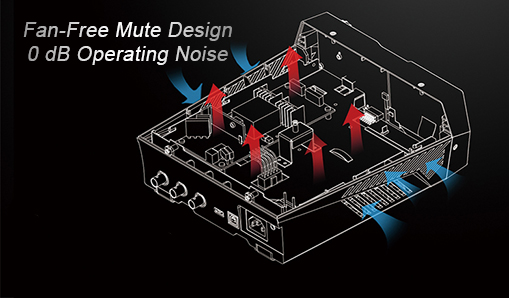

It adopts a fanless design structure and operates without noise interference.
Harmonic generator

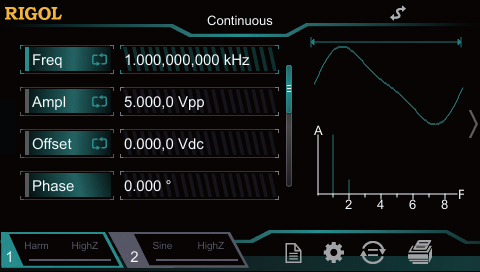

It has a built-in 8th harmonic generator function, which outputs harmonics with specified orders, amplitudes, and phases. It is usually used in the testing of harmonic detection equipment or harmonic filtering equipment.
